Irrigation System & Accessories

Start-Nipple
16MM
Grommet
16MM
Joinner
16MM
End Cap
16MM
Start Nipple
20MM
Grommet
20MM
End Cap
20MM
Lateral Clock
16MM & 20MM
Elbow
16MM & 20MM
Tee
16MM & 20MM
Online Dripper
Thin Wall Lateral Cock
Thin Wall Joinner
Thin Wall End Cap
Thin Wall Take Off

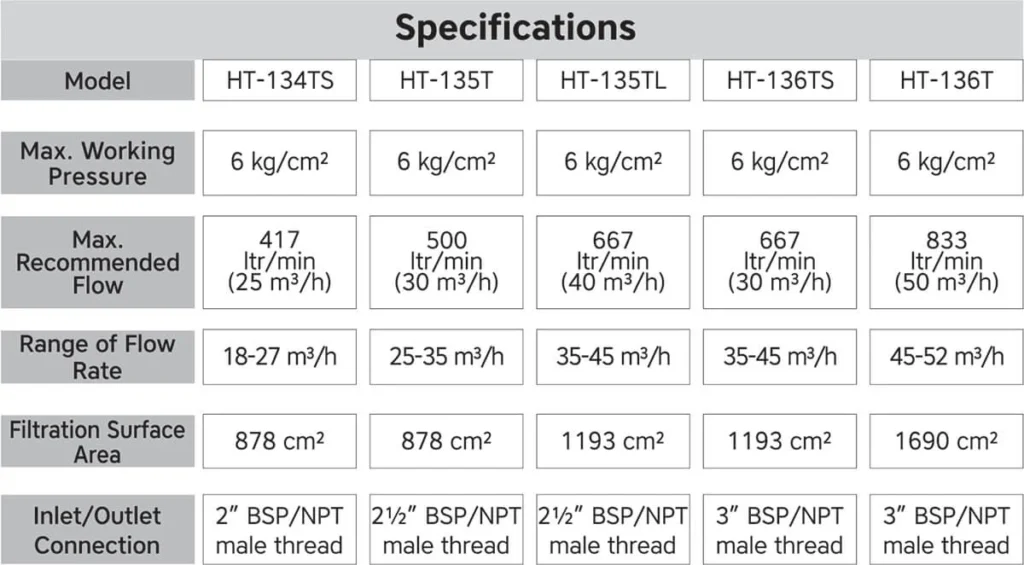

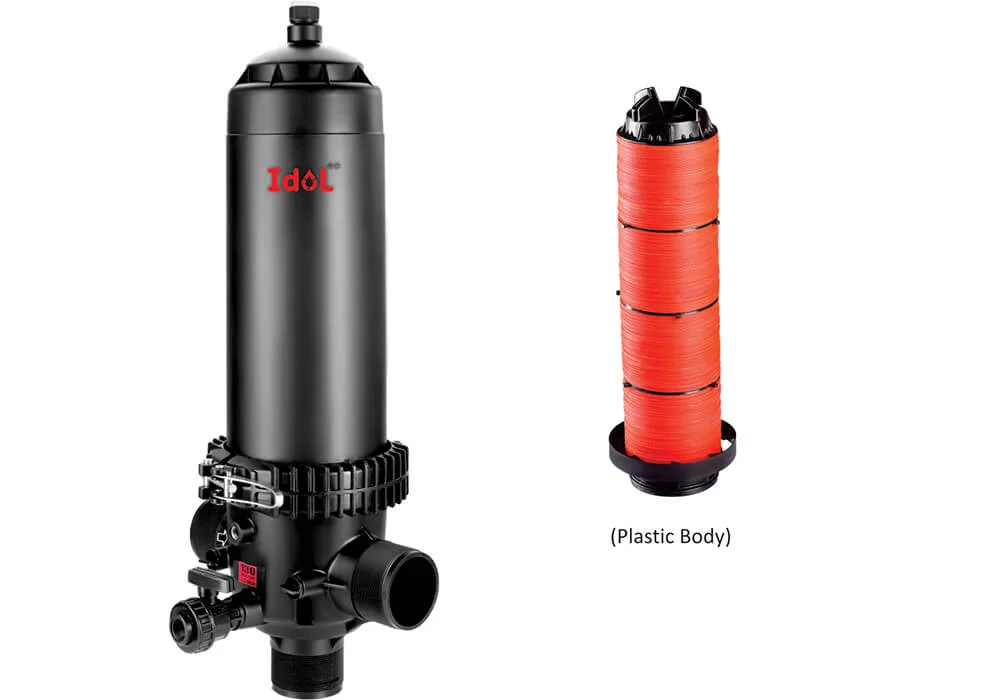

Disc Filters

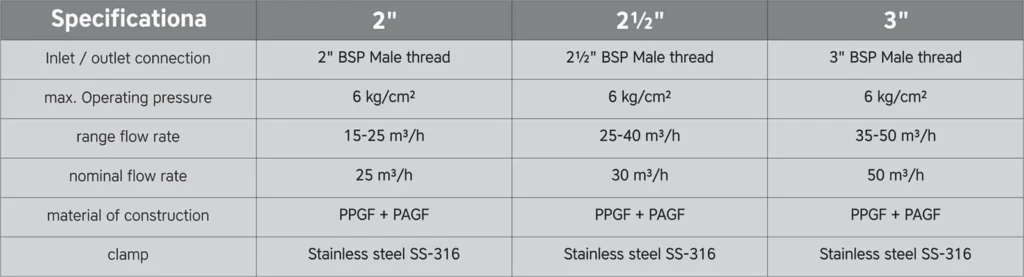

FEATURES

  • DuPont Nylon Hybrid Clamp with SS Lock for high pressure operations.
  • PPGF Slip-on flange for easy installation (Optional).

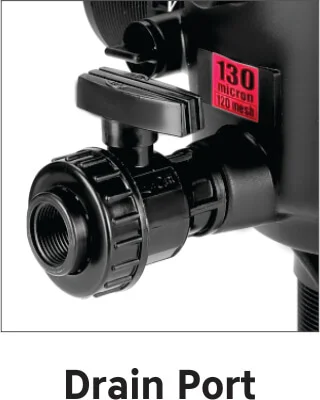

  • Bigger drain port with 3/4” ball valve for quick drainage.
  • Disc filters are made with special Helix system which gives better performance & results.

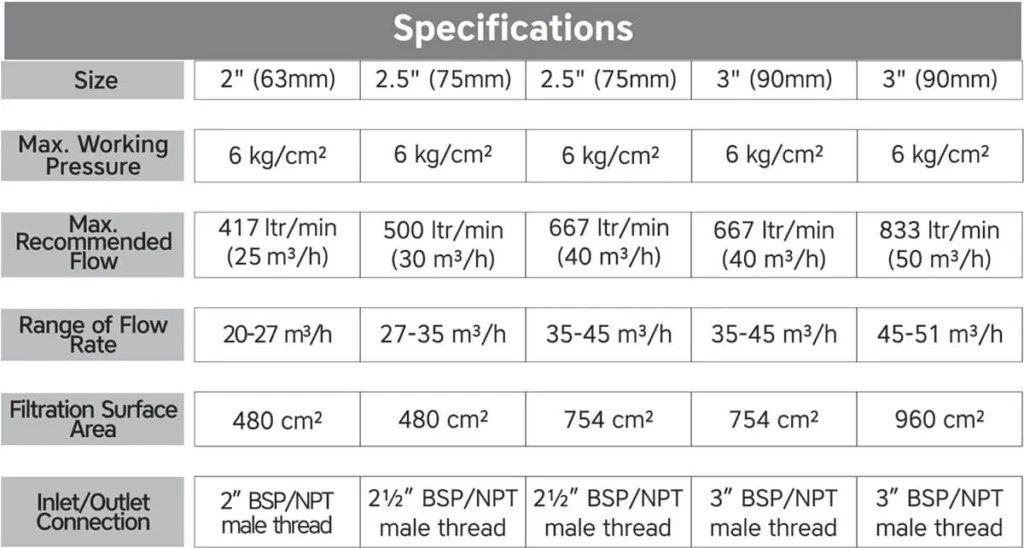

FEATURES

  • Disc Filter designed for outside to Inside flow.
  • AUXILIARY CONNECTIONS – Two pressure gauge ports with 1/4” male threaded connections.
  • Filter body and cap connected by threaded connection to sustain high pressure and easy opening & closing. High filtration efficiency.
  • Spring Loaded Disc cartridge for uniform compression of discs.
  • UV protected, chemical and high pressure resistant reinforced plastic material used.

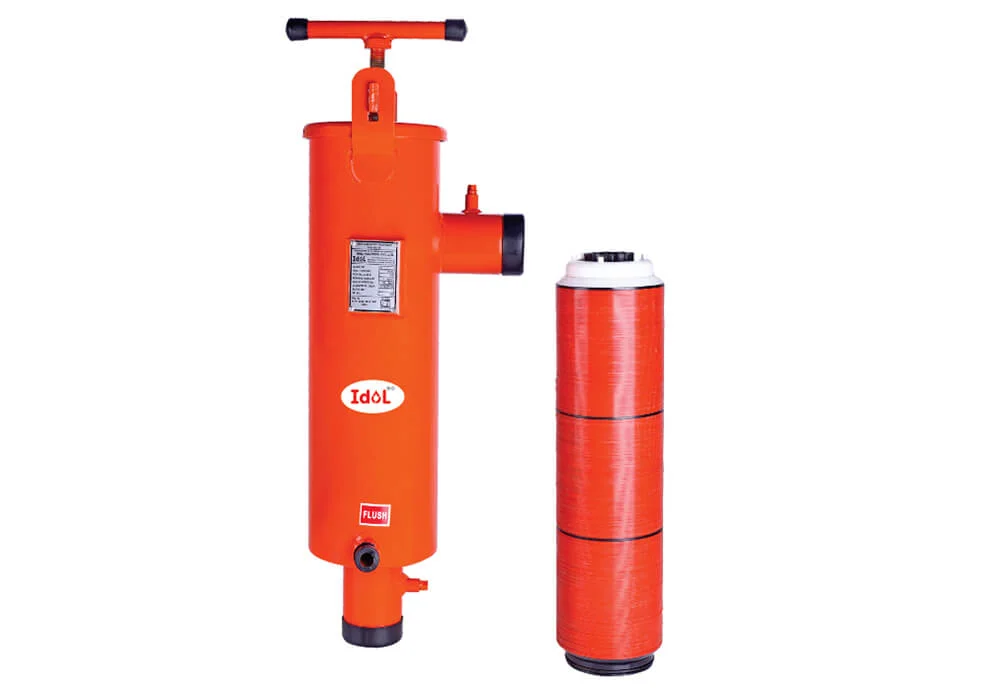

FEATURES

  • Outside – Inside filtration.
  • For upside installation.
  • Bigger port for water drainage.
  • Special SS-316 single mesh for strength and corrosion resistance.
  • Provided with specially designed vacuum breaker valve for quick drain and to avoid vacuum air trapping.
  • The filters are made from special chemically bonded polymer which are weather resistant.
  • Clamp made out of reinforced Nylon with plated steel lock assembly for durability.
  • Specially designed long handle for easy clamp opening & closing.

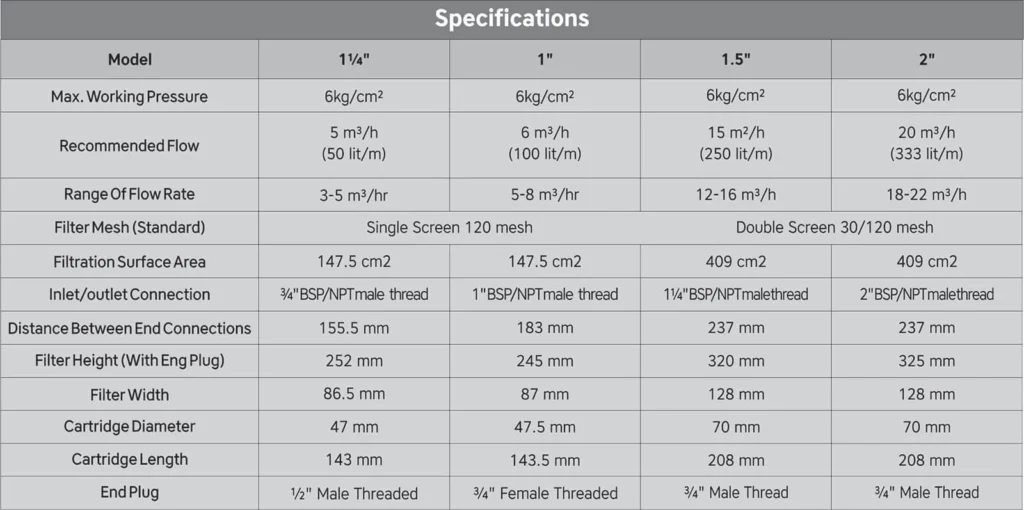

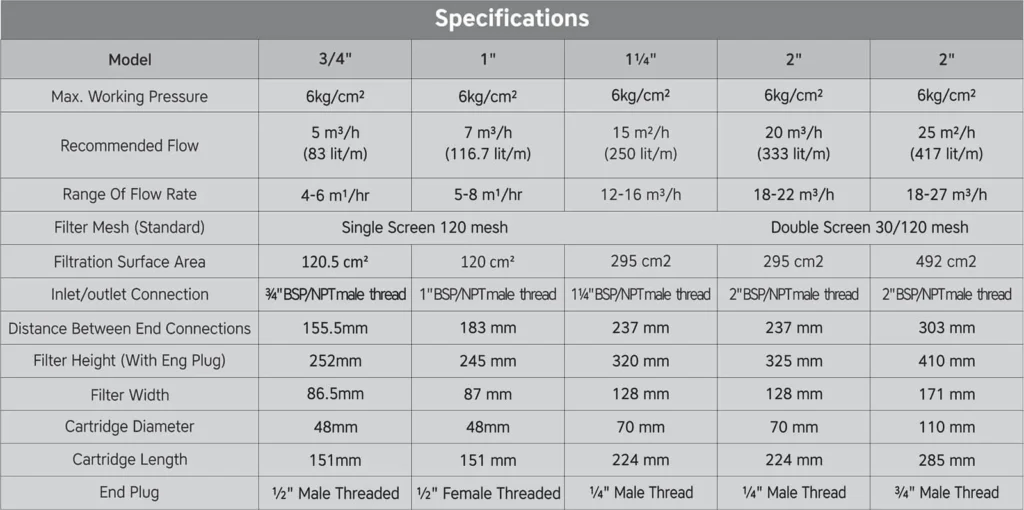

FEATURES

  • Flow passes through inside to outside of screen cartridge.
  • Uniform distribution of flow into filter housing optimize filtration process.
  • Filter designed for max. operating pressure 6 bar (PN-6).
  • 1/2” male threaded 2 pressure ports.
  • Stainless steel (SS 316) double mesh screen for rust prevention.
  • Filter body cap equipped with 1/4” female threaded connection for draining.
  • Screen cartridge with double screen 30 & 120 mesh to avoid tearing of mesh.

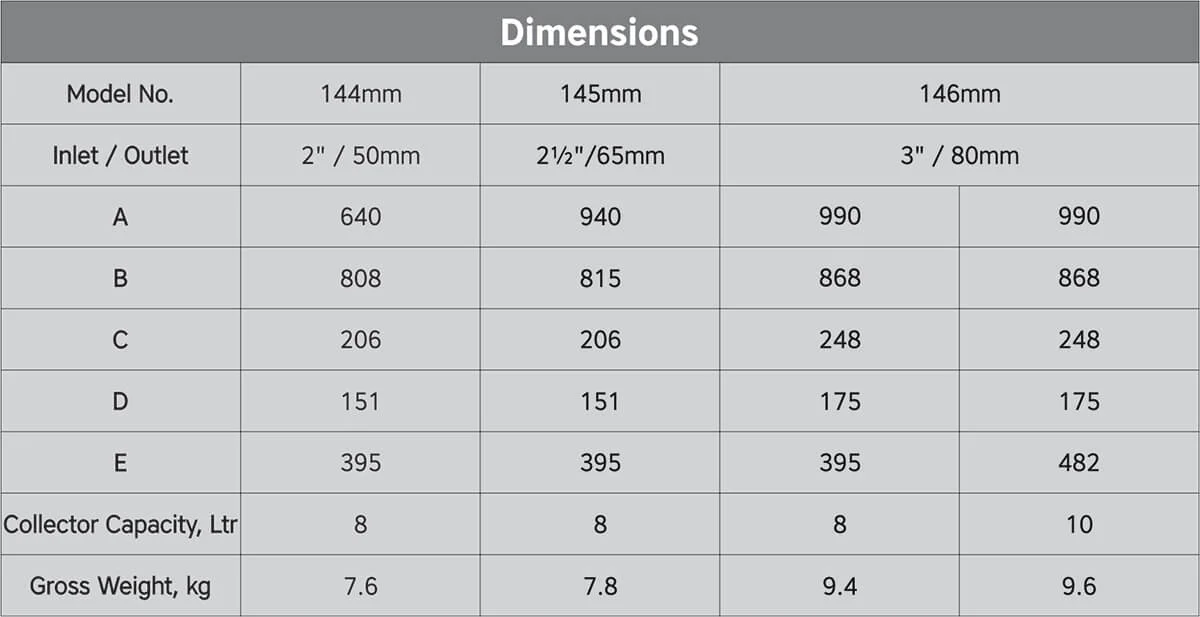

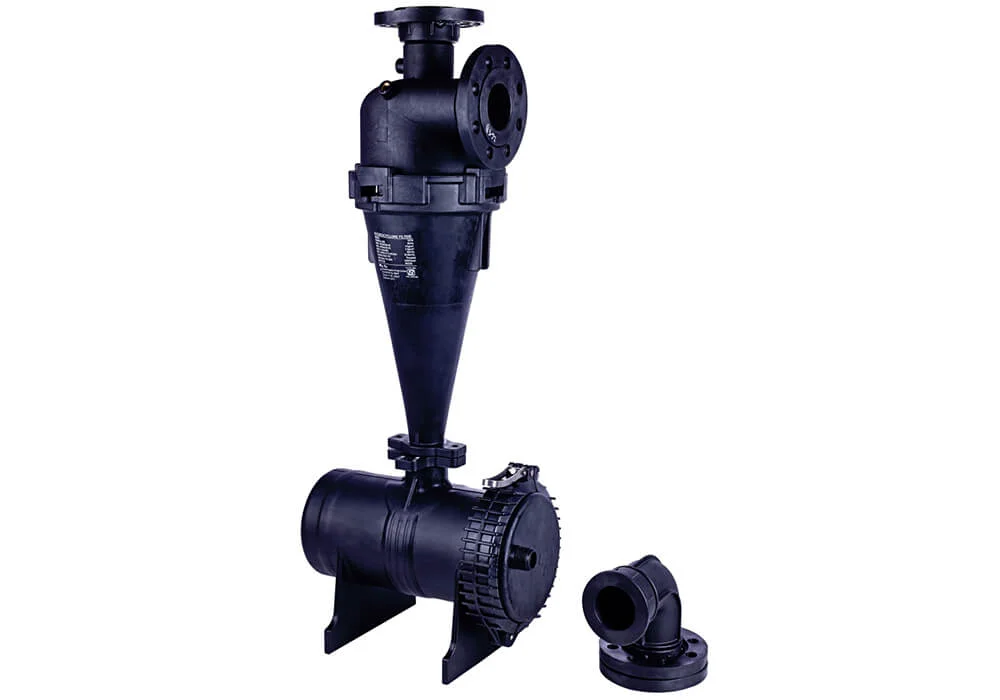

FEATURES

  • Reinforced Polypropylene / Nylon Construction
  • Hydro dynamically designed to create maximum centrifugal action.
  • Dirt can be easily flushed out through drain port.
  • Stainless steel clamp used for fast & easy cleaning of collector tank.
  • New stand for height increase.
  • Collector tank available in 8 and 10 litres.
  • Specially designed high wear resistant plastic material sleeve inbuilt during molding at the bottom of cone to avoid wearing due to strong sand vortex.

TECHNICAL SPECIFICATION

  • Available connections: BSP/NPT male threaded, flange, victaulic.
  • Maximum operating pressure: 6 kg/cm².

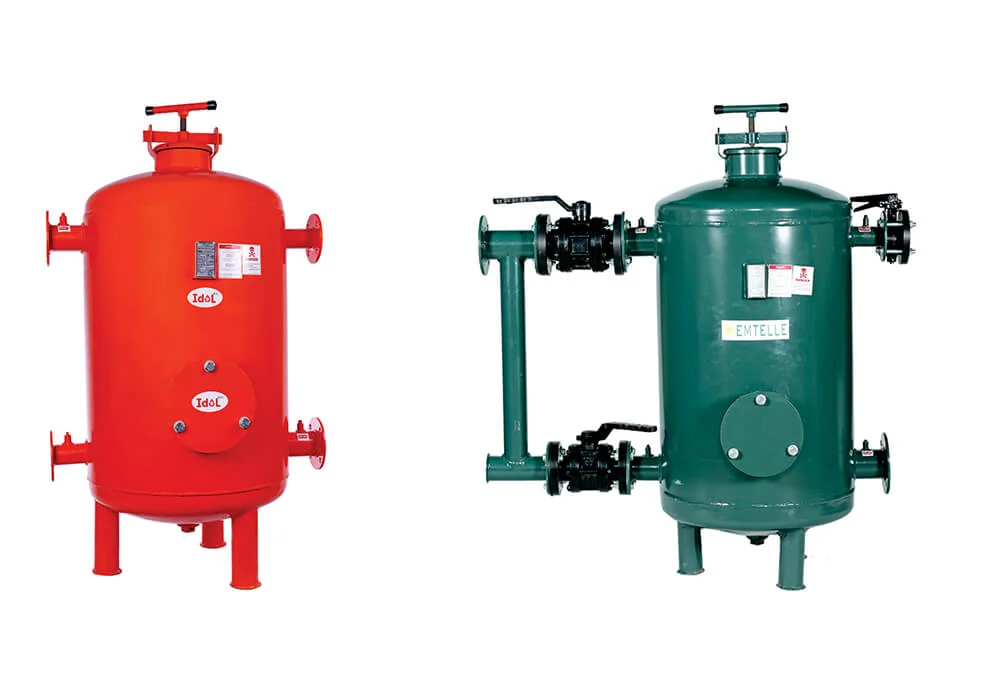

They are broadly used in water purification systems for removal of granules and other solid particles from the water. It consists of sand layers that can absorb granules which are present in the water.

TYPES OF SAND FILTERS

Rapid (gravity) sand filters:

This type of sand filter is widely used in municipal drinking water.

Upward flow sand filters:

Slow sand filters are used in the water industry to treat water for water purification purposes.

KEY FEATURES

  • Minimal operation costs
  • Simple in design
  • Longer service life
  • Optimum performance

APPLICATIONS

  • Water treatment plants
  • Agricultural industry
  • Household water purifications
  • Municipal drinking water

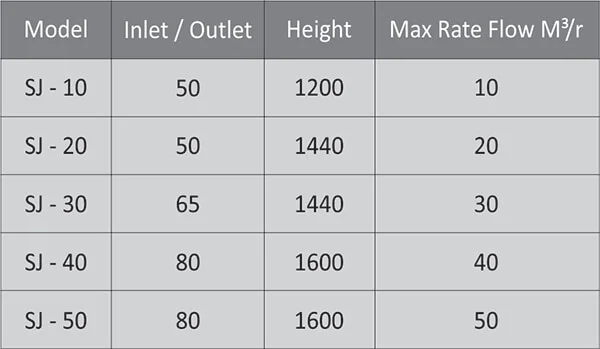

The Sand Filters can be used as Primary Filtration, and can be used as Single or Battery of Sand Filter. Use of Silica Quartz Sand with Mushroom ensures effective filtration.

APPLICATIONS

Anti corrosive pre-treated epoxy / polypropylene powder coating to ensure long life.

Inlet / Outlet pressure gauge points to check pressure.

Back flush arrangement can be provided for back flushing as per customer requirements.

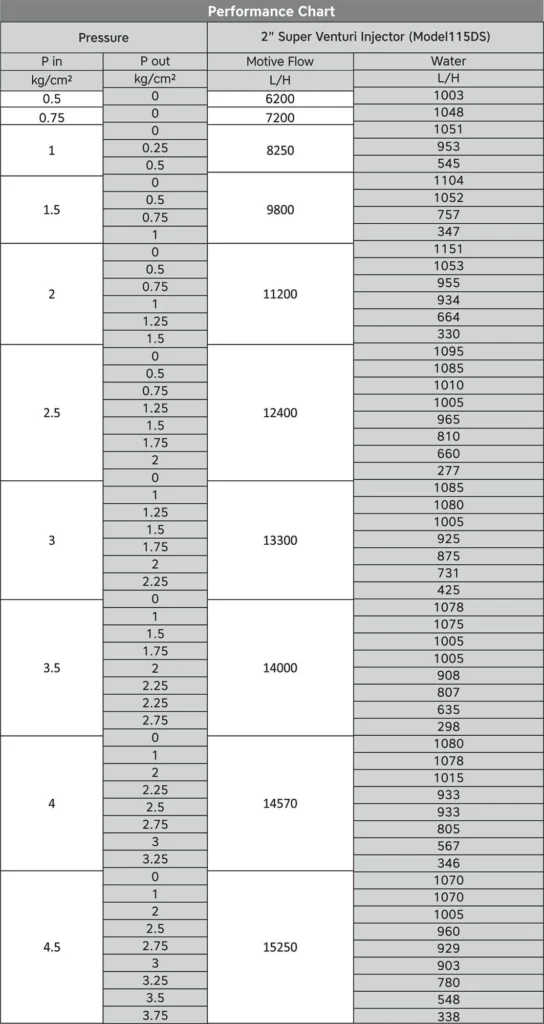

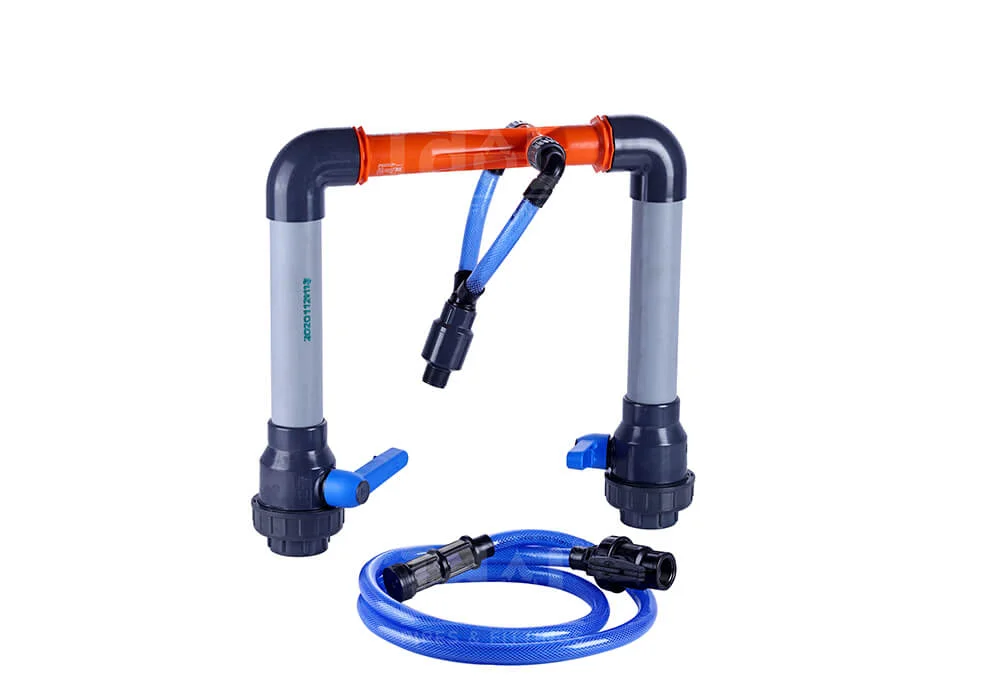

FEATURES

  • Controlled adjustable suction as required in field.
  • Uniform fertilizer application.
  • More saving of energy as well as manpower.
  • Spring loaded external NRV for easy cleaning.

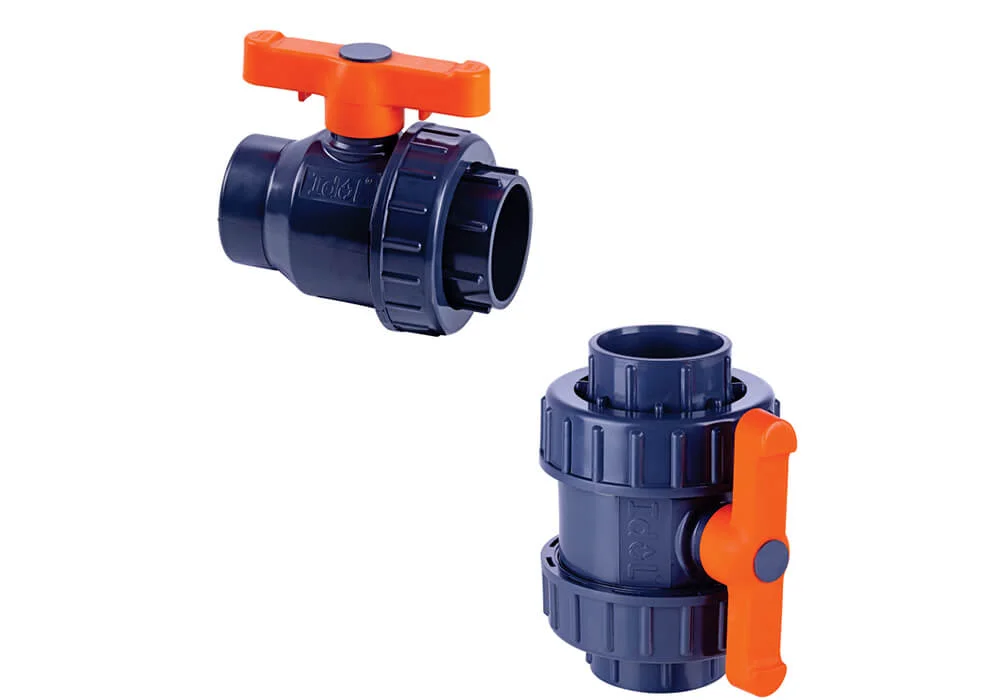

FEATURES

  • Quarter turn hand operated ON/OFF Ball Valve.
  • End Connections: Threaded / Solvent Socket.
  • Operating Pressure: 16 Bar for 1”, 1½” and 2” models, while for the 3” model it is PN 10.
  • True union design for easier installation or repair, without expanding the pipe system.
  • User-friendly design allows smooth operation of handle.
  • Union nut load does not get transferred onto ball.
  • Free from vibration or chattering during opening and closing of valve.
  • Inbuilt spanner wrench on handle for valve disassembly / assembly.
  • TPE seal effect ensures leakage-free operation and low fixed torque.
  • Chemical / corrosion resistant, color UV stabilized.
  • Pressure Rating – PVC Ball Valve: PN – 16
  • Kaveri PP Ball Valve: PN – 6

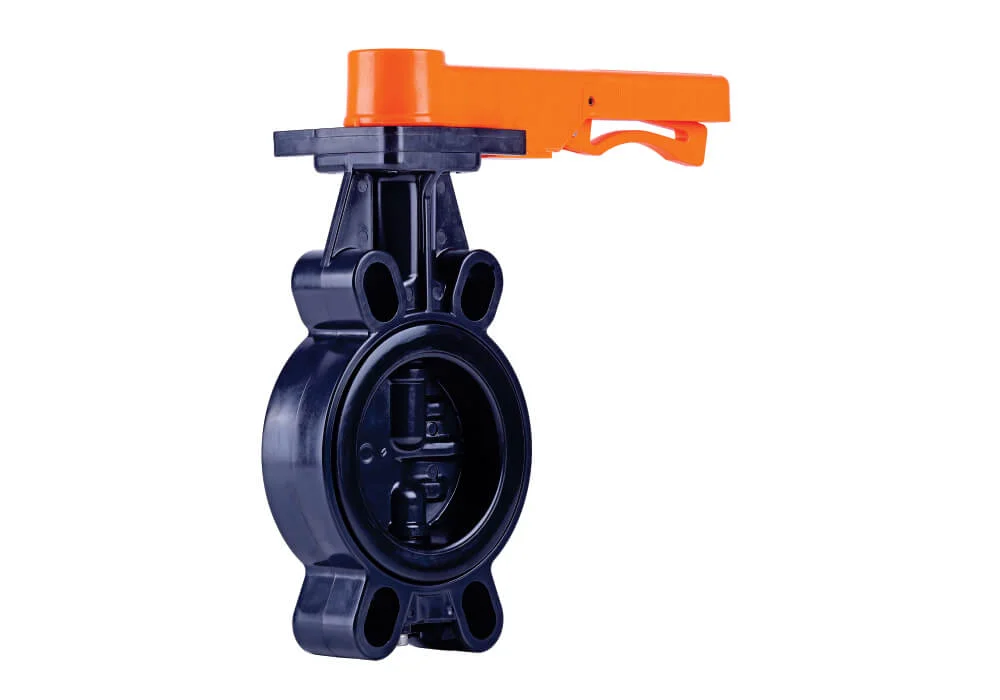

FEATURES

  • Light Weight, easy to install.
  • One Piece Body made of PVC-U.
  • Disc designed ensuring low torque and low pressure loss.
  • Suitable for piping in a limited space.
  • Butterfly valve for water applications (irrigation, water treatment, industrial etc.).

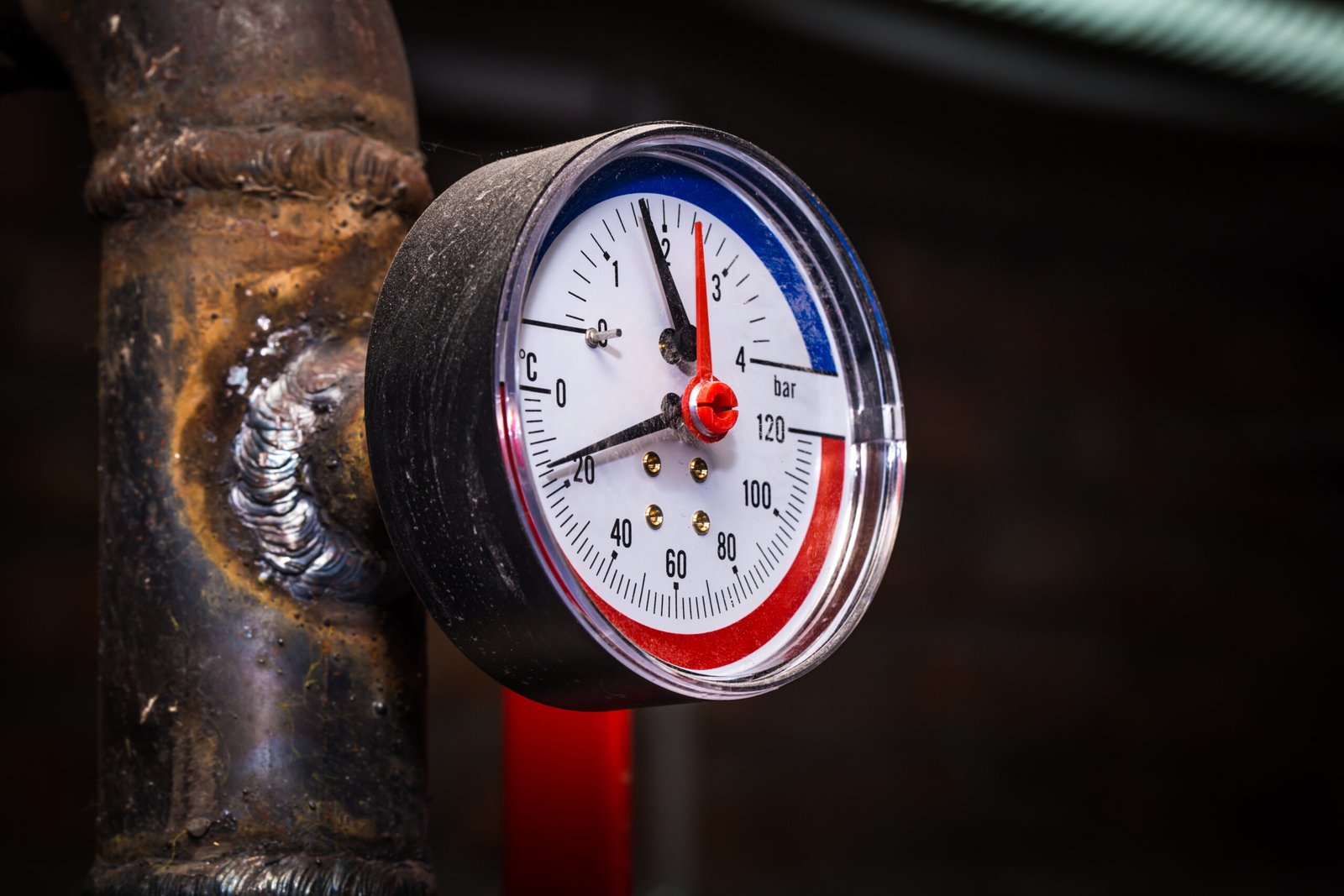

FEATURES & SPECIFICATIONS

  • Connection: 1/4” Male Threaded BSP / NPT
  • General Purpose Application
  • Accuracy Class ± 2.0%
  • Compliance to EN 837-1 & IS 3624
  • Available with Double Pressure Measurement Scale
  • Dial Color & Customer Logo can be changed as per customer requirement.
  • Warranty: 12 Months.

FEATURES & SPECIFICATIONS

  • Expulsion (Kinetic Air): When the pipe is being filled, the release valve remains open expelling all the surplus air outside the installation. When the pipe is full of water, the air release valve closes tightly.
  • Air Admission (Air Intake): While negative pressure (pipe vacuum) occurs, the air release valve opens to allow air to go inside the pipe. This system avoids possible damages in pipes and accessories.
  • Expulsion of Residual Air (Automatic Air): The air release valve constantly releases the residual air generated in the installation (due to water level changes in reservoir during fertigation, leakages in suction pipe, fittings), expelling air even when the system is under pressurized condition.

TECHNICAL SPECIFICATIONS

  • Min. Sealing Pressure: 1” & 2”: 5–7 PSI
  • Working Pressure Range: 1” & 2”: 7–175 PSI

INLET CONNECTION

  • Inlet Connection: Male BSP / BSPT Threaded
  • Available Connection Size: 1” & 2”

FEATURES & SPECIFICATIONS

  • Quarter Turn Hand Operated ON/OFF Ball Valve.
  • End Connections: Flanged Type
  • Operating Pressure: 8 Bar | 110 PSI
  • User-friendly design allows smooth operation of handle.
  • Union nut load does not get transferred onto ball.
  • Free from vibration or chattering during opening and closing of valve
  • Inbuilt spanner wrench on handle for valve disassembly / assembly.
  • TPE seals effect ensures leakage-free and low fixed torque.
  • Chemical / Corrosion resistant, Color UV stabilized.
